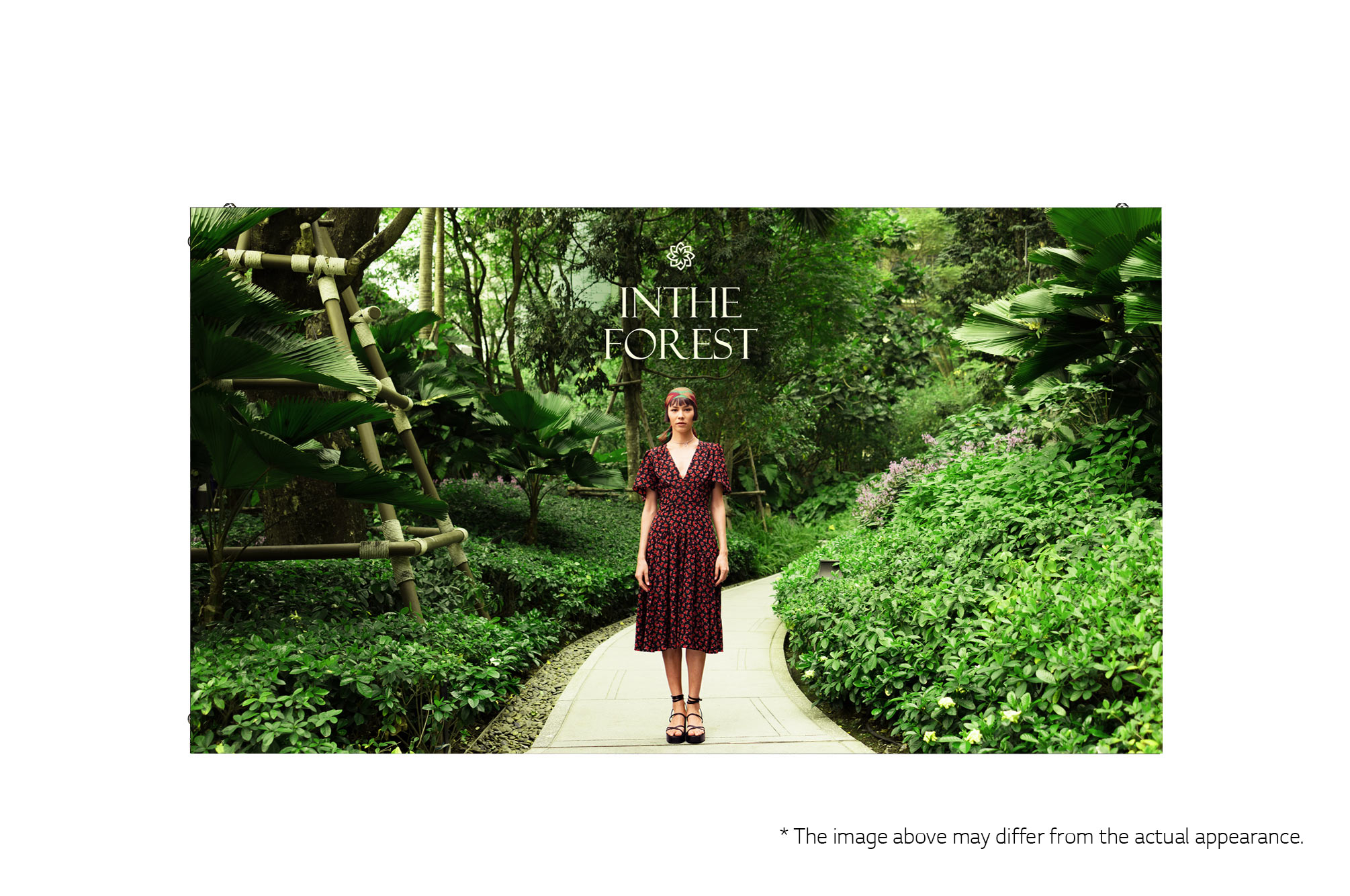

LSCC Ultra Slim Series
The LG LSCC series offers stunning displays available in fixed sizes of 108, 136, 163, and 217 inches. These screens are currently in stock and ready for fast delivery, including original wall mount and trimkit. Perfect for commercial use, the LSCC series ensures high-quality visuals and reliability. Upgrade your viewing experience with these impressive displays. Request a quote for quick and efficient service!
LSCC Ultra Slim Series
Indoor LED

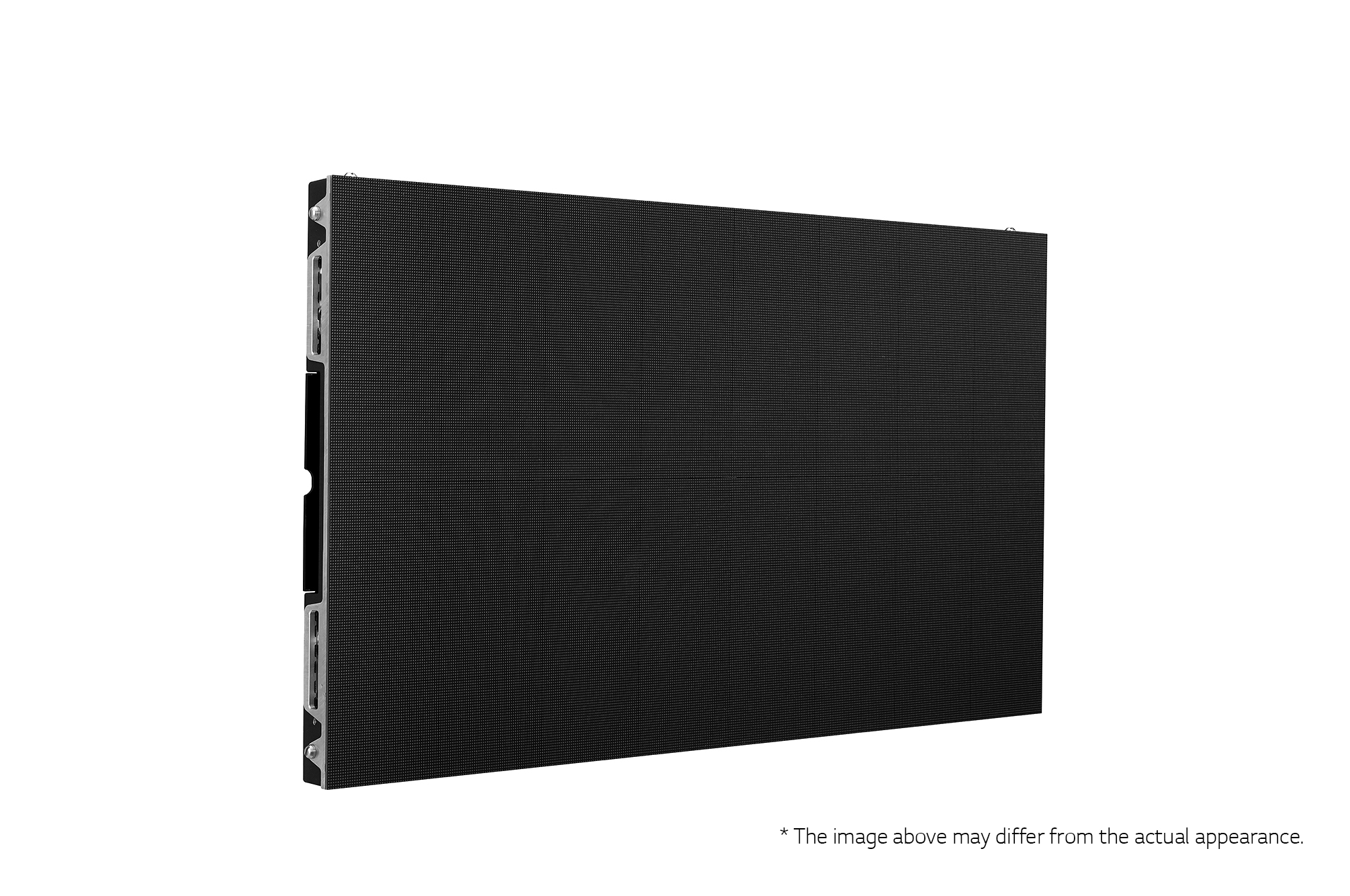

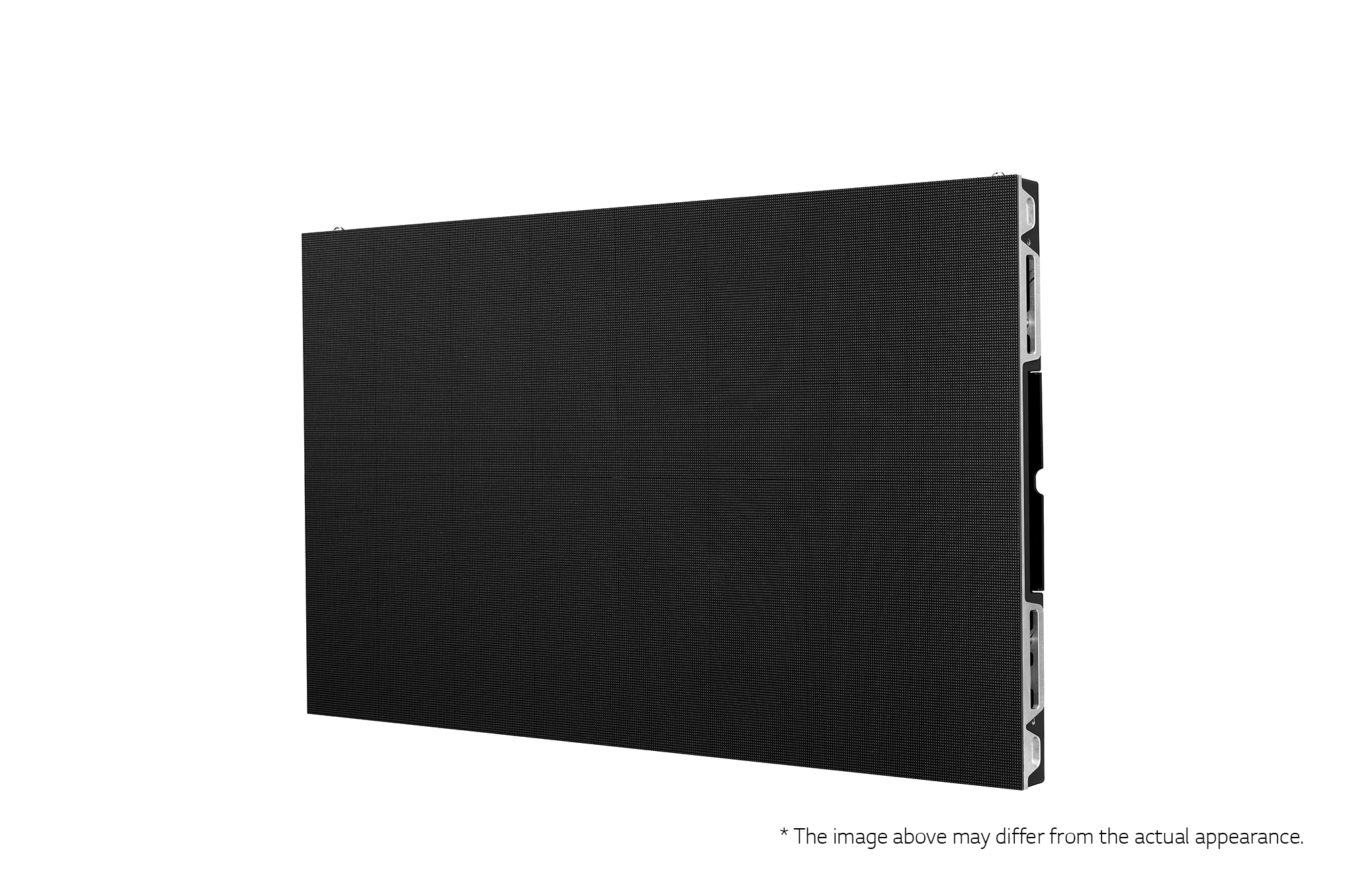

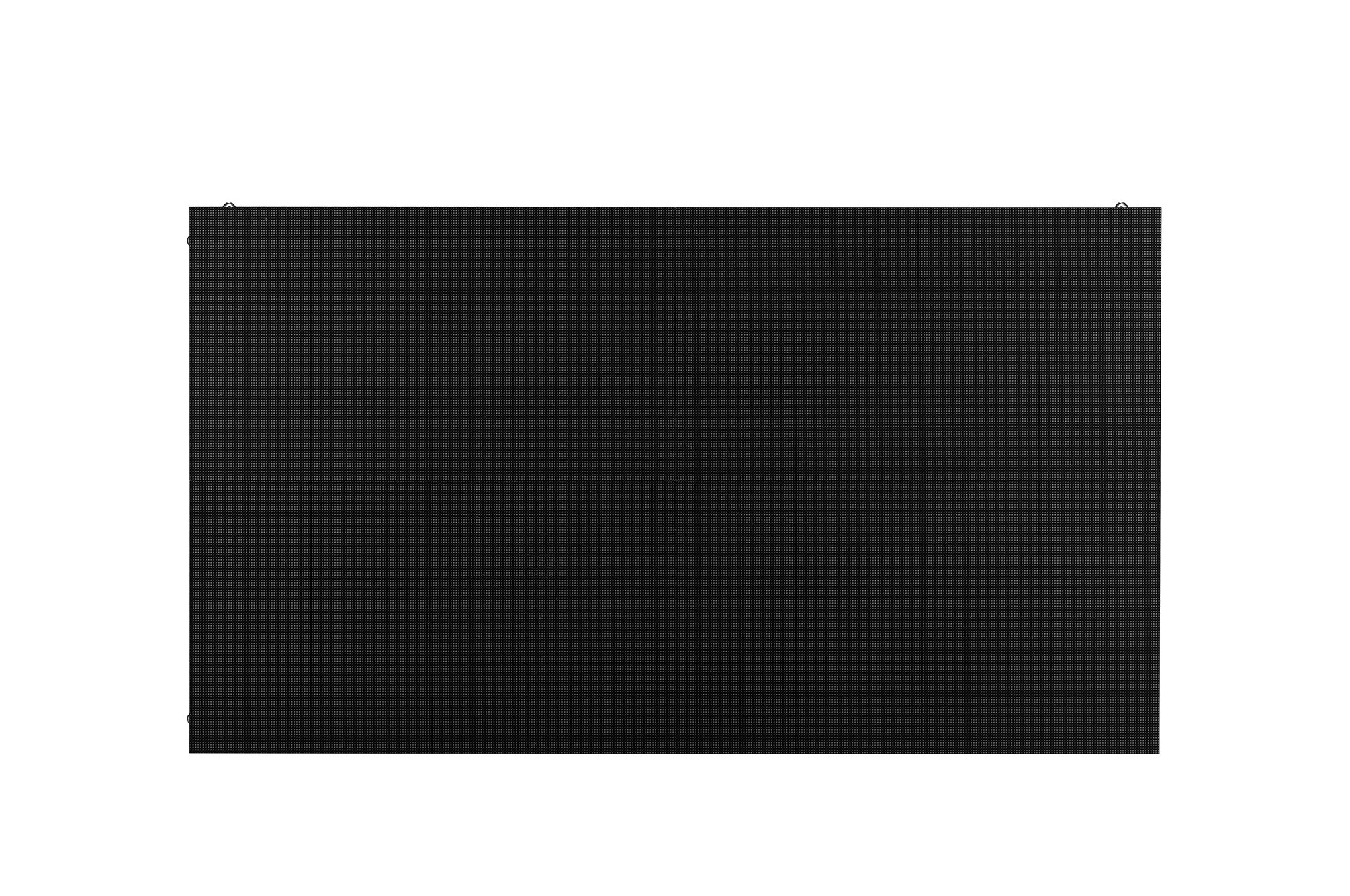

The LSCC Ultra Slim Series offers stunning 4K HDR visuals, ultra-slim 33.6 mm depth, and lightweight 5.0 kg cabinets. Available in standard and customizable sizes, it ensures superior energy efficiency and seamless installation. Ideal for corporate spaces, it also supports 90° corner and curved designs.
Key Feature
- Pixel pitch: 1.25 / 1.56 / 1.88 / 2.5 mm
- Brightness: 800 nit (Max.)
- Weight per Cabinet: 5.0 kg
- Service Access: Front
- IP Rating Front / Rear: IP30
Optimized Screen Sizes for All Spaces
The LSCC Ultra Slim Series enhances efficiency with three pre-assembled options available in 108", 136", 163", and 217" diagonal sizes. These widely used sizes, combined with full HD resolution, make them ideal for corporate conference rooms, meeting spaces, and lobbies, ensuring a suitable model for every application with comfortable viewing distances of up to 7' (2.1 m).
For those needing a different fit, the LSCC Ultra Slim Series also offers customizable sizes and resolutions to meet specific requirements.

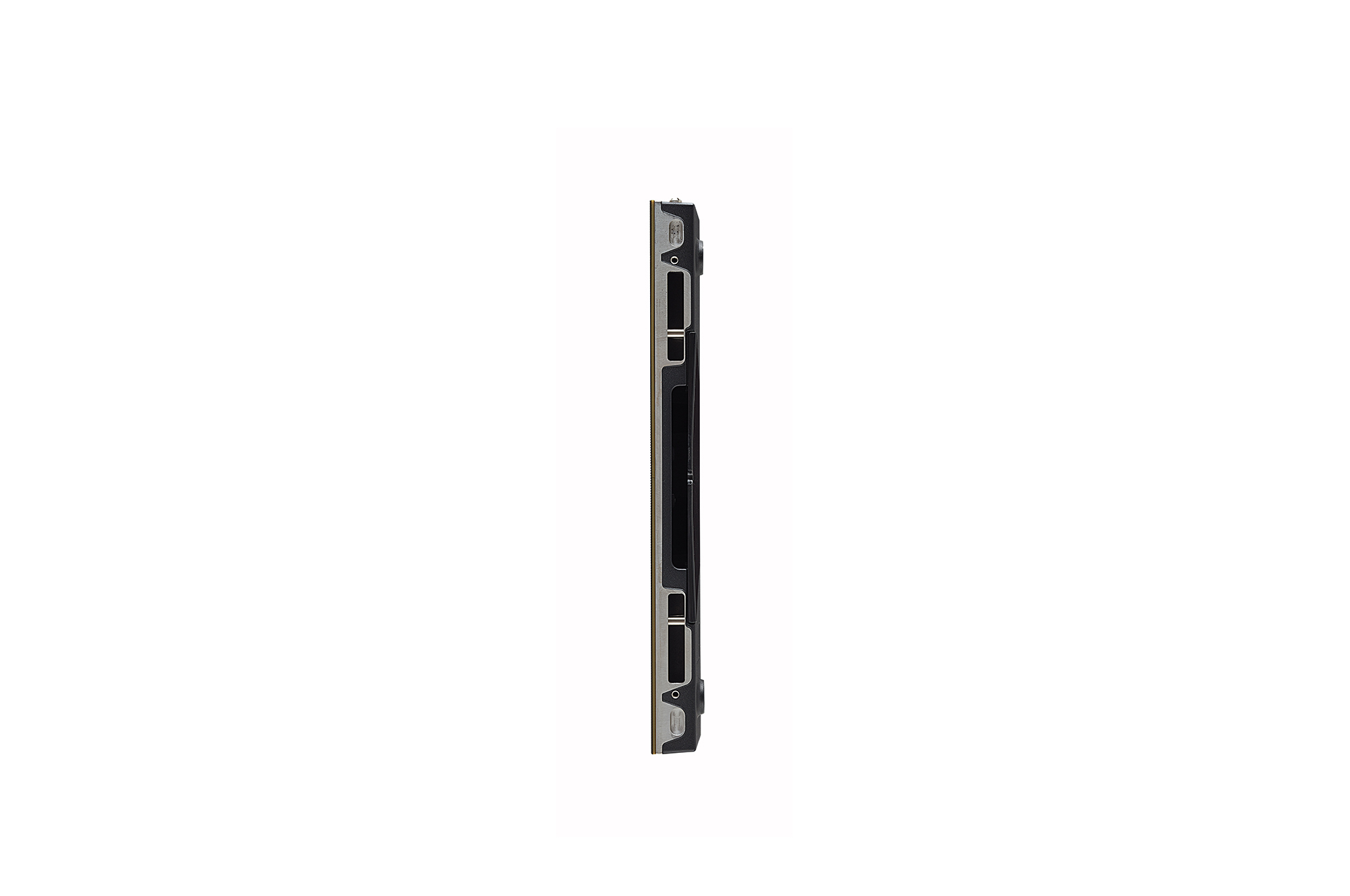

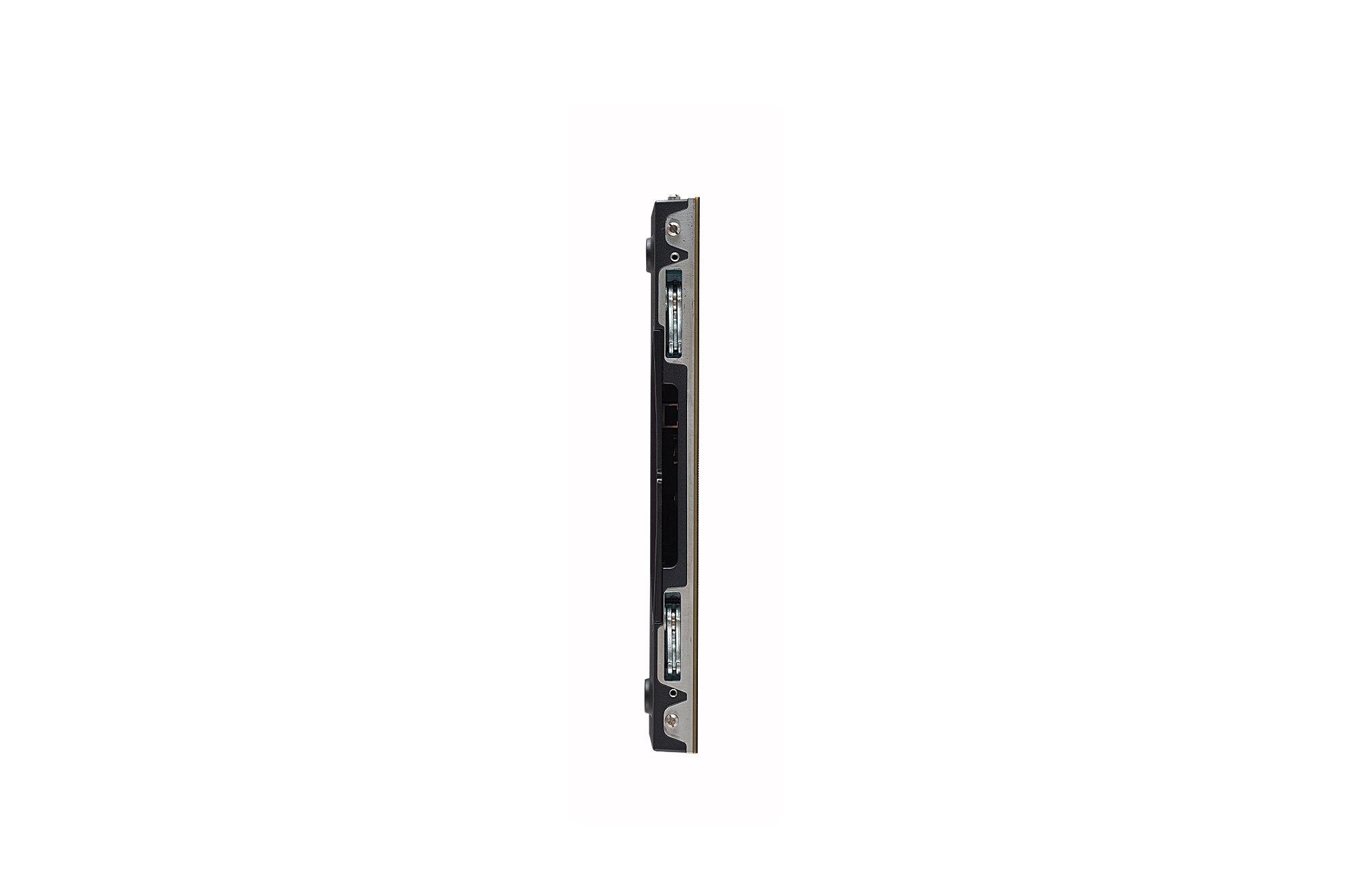

Ultra Slim Depth and Lightweight
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Stunning Picture Quality with 4K HDR
All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.
* This feature is only supported when using LG’s controller, CVCA.
Superior Energy Efficiency
The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG’s indoor PKG lineup as of Aug 2024.
* Power consumption improvement is compared to the LG LSCB model.

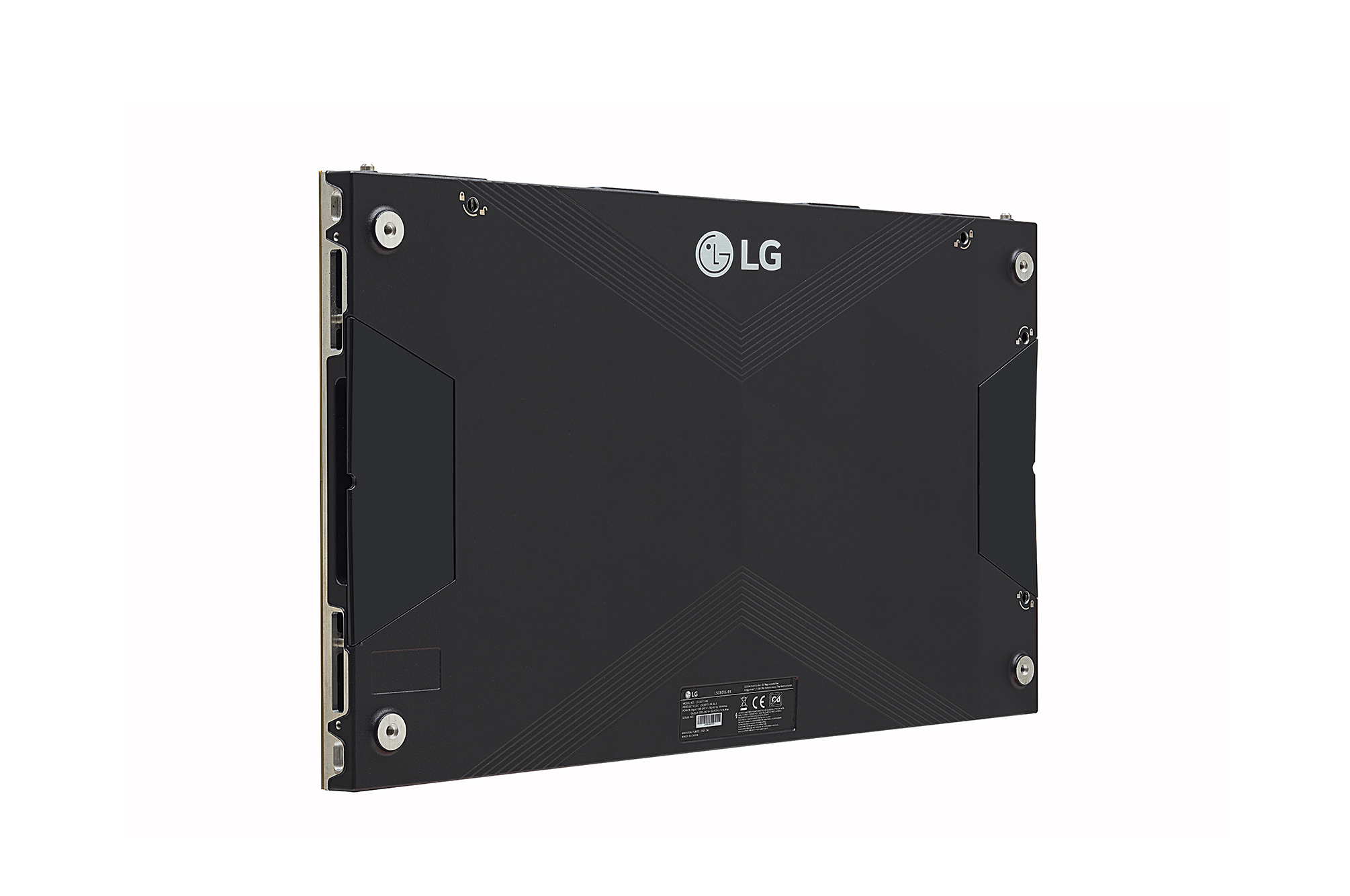

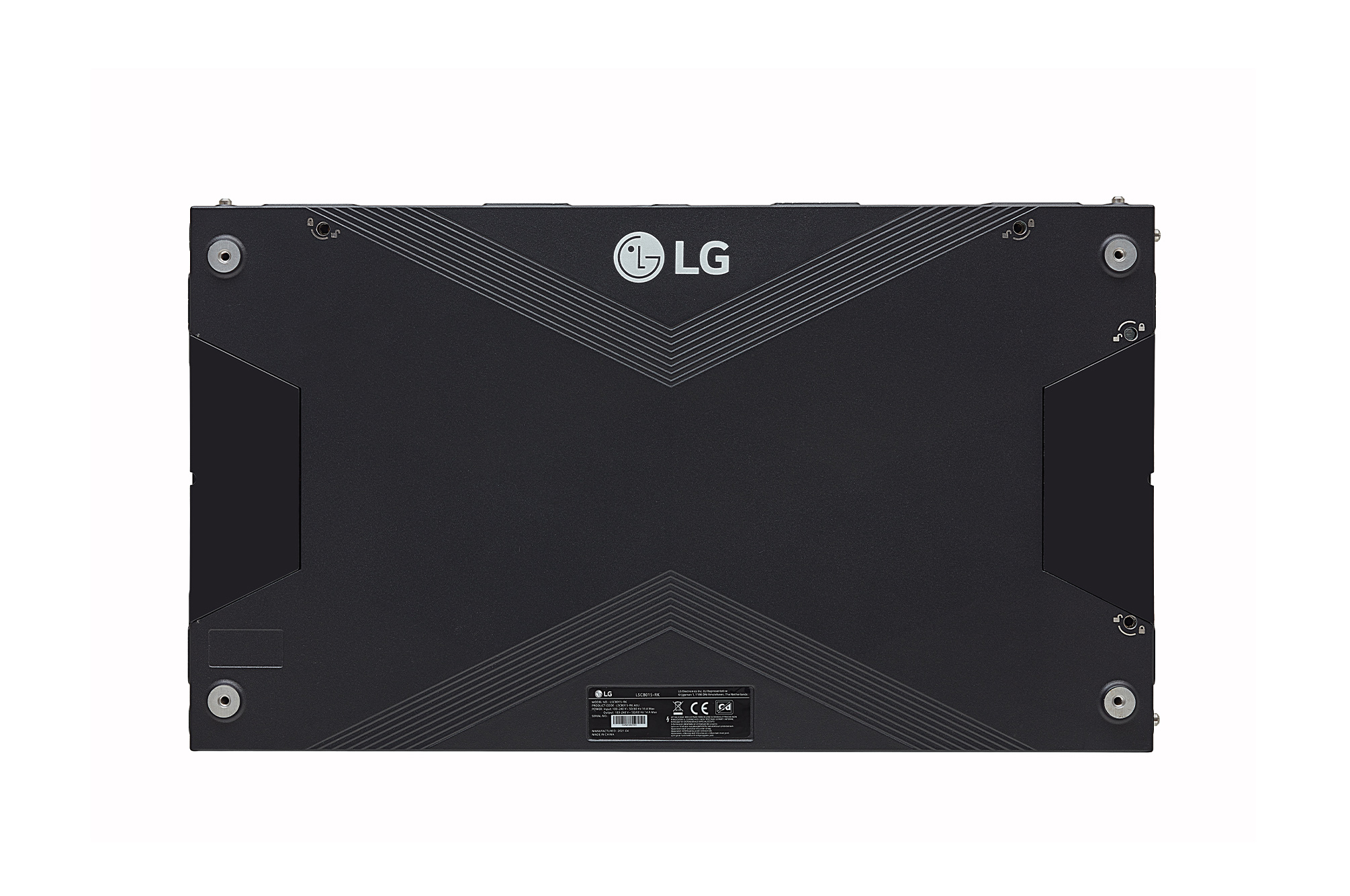

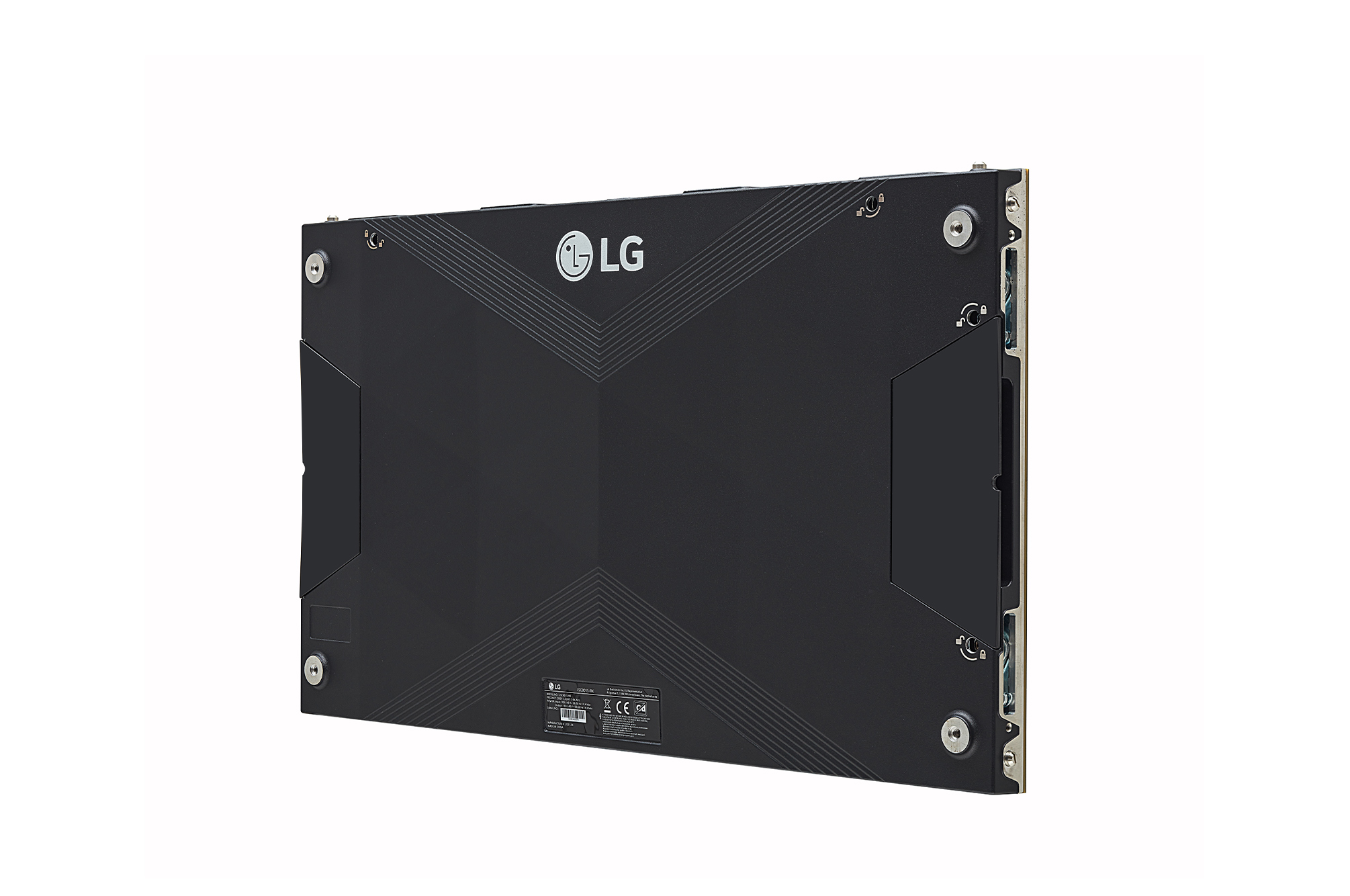

Attachable Wire Hooks for Modules
All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety
* Wires can be ordered separately as accessories.
90° Corner Design Available
Flexible Curve LED Display
The LSCC-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm. This greatly enhances the design’s flexibility, which allows users to freely create the curved screen as they want.
* Applied to the LSCC15-CKF, LSCC18-CKF, and LSCC25-CKF models only. The LSCC12-CKF supports curvatures of up to 1,720 mm.
Tech specs
|
LSCC012-GZ |
LSCC015-GZ |
LSCC018-GZ |
LSCC025-GZ |
||
|---|---|---|---|---|---|
|
Pitch Name |
P1.25 |
P1.56 |
P1.88 |
P2.5 |
|
|
Physical |
Pixel Configuration |
Single SMD |
Single SMD |
Single SMD |
Single SMD |
|
Pixel Pitch (mm) |
1.25 |
1.56 |
1.88 |
2.50 |
|
|
Module Resolution (W × H) |
240 × 135 |
192 × 108 |
160 × 90 |
120 × 135 |
|
|
Module Dimensions (W × H, mm) |
300 × 168.75 |
300 × 168.75 |
300 × 168.75 |
300 × 337.5 |
|
|
Weight per Module (kg) |
0.31 |
0.31 |
0.31 |
0.56 |
|
|
No. of Modules per Cabinet (W × H) |
2 × 2 |
2 × 2 |
2 × 2 |
2 × 1 |
|
|
Cabinet Resolution (W × H) |
480 × 270 |
384 × 216 |
320 × 180 |
240 × 135 |
|
|
Cabinet Dimensions (W × H × D, mm) |
600 × 337.5 × 33.6 |
600 × 337.5 × 33.6 |
600 × 337.5 × 33.6 |
600 × 337.5 × 33.6 |
|
|
Cabinet Surface Area (m²) |
0.2 |
0.2 |
0.2 |
0.2 |
|
|
Weight per Cabinet (kg/unit) |
5.0 |
5.0 |
5.0 |
5.0 |
|
|
Weight per Square Meter (kg/m²) |
24.69 |
24.69 |
24.69 |
24.69 |
|
|
Physical Pixel Density (pixels/m²) |
640,000 |
409,600 |
284,444 |
160,000 |
|
|
Flatness of Cabinet (mm) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
|
Cabinet Material |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
|
|
Service Access |
Front |
Front |
Front |
Front |
|
|
Optical |
Max. Brightness (After Calibration, nit) |
800 (Max.) |
800 (Max.) |
800 (Max.) |
800 (Max.) |
|
Color Temperature (K) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
|
|
Visual Viewing Angle (H × V) |
160 × 160 |
160 × 160 |
160 × 160 |
160 × 160 |
|
|
Brightness Uniformity |
97% |
97% |
97% |
97% |
|
|
Color Uniformity |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
|
|
Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
|
|
Processing Depth (bit) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
|
|
Electrical |
Power Consumption (W/Cabinet, Max.) |
112 |
112 |
96 |
84 |
|
Power Consumption (W/Cabinet, Avg.) |
37 |
37 |
32 |
28 |
|
|
Power Consumption (W/m², Max.) |
553 |
553 |
474 |
415 |
|
|
Heat Dissipation (BTU/h/Cabinet, Max.) |
382 |
382 |
328 |
287 |
|
|
Heat Dissipation (BTU/h/Cabinet, Avg.) |
127 |
127 |
109 |
96 |
|
|
Heat Dissipation (BTU/h/m², Max.) |
1,887 |
1,887 |
1,618 |
1,415 |
|
|
Power Supply (V) |
100 to 240 |
100 to 240 |
100 to 240 |
100 to 240 |
|
|
Frame Rate (Hz) |
50 / 60 |
50 / 60 |
50 / 60 |
50 / 60 |
|
|
Refresh Rate (Hz) |
3,840 |
3,840 |
3,840 |
3,840 |
|
|
Operation |
Lifetime (Half Brightness) |
100,000 |
100,000 |
100,000 |
100,000 |
|
Operating Temperature (°C) |
-10 to +45 |
-10 to +45 |
-10 to +45 |
-10 to +45 |
|
|
Operating Humidity |
0-80% RH |
0-80% RH |
0-80% RH |
0-80% RH |
|
|
IP Rating Front / Rear |
IP30 / IP30 |
IP30 / IP30 |
IP30 / IP30 |
IP30 / IP30 |
|
|
Standard |
Certification |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
|
Certification (Fire Protection) |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
|
|
Environment |
RoHS, REACH |
RoHS, REACH |
RoHS, REACH |
RoHS, REACH |
|
|
Controller |
CVCA |
CVCA |
CVCA |
CVCA |
|
|
90 Degree Corner Cut |
Yes |
Yes |
Yes |
Yes |
|
* Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.
Tech specs
|
CVCA (Controller) |
||
|---|---|---|
|
Cabinet |
LSCC-GZ, LSCC-CZ, LSCC-CZF |
|
|
Max |
Loading Capacity |
3,840 × 2,160 @ 60 Hz |
|
Output Resolution |
8.2944 Million Pixels |
|
|
Input |
HDMI 2.0, HDCP 2.2, DP 1.2 / HDCP 1.3, OPS |
|
|
Output |
Ethernet (To LED Screen (16-channel)) |
|
|
Control |
LAN |
Yes |
|
RS-232C |
Yes (LOOP) |
|
|
Sensor |
Temperature (Embedded Sensor) |
Yes |
|
Video |
Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR10 Pro |
|
|
Application |
SuperSign CMS, webOS API, LG ConnectedCare, Configuration SW (LED Assistant) |
|
|
Mechanical |
Size (W × H × D, mm) |
443 × 63 × 307.5 |
|
Weight (kg) |
4.9 |
|
* Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.
Tech specs
|
LSCC012-CZ |
LSCC015-CZ |
LSCC018-CZ |
LSCC025-CZ |
||
|---|---|---|---|---|---|
|
Pitch Name |
P1.25 |
P1.56 |
P1.88 |
P2.5 |
|
|
Physical |
Pixel Configuration |
Single SMD |
Single SMD |
Single SMD |
Single SMD |
|
Pixel Pitch (mm) |
1.25 |
1.56 |
1.88 |
2.50 |
|
|
Module Resolution (W × H) |
240 × 135 |
192 × 108 |
160 × 90 |
120 × 135 |
|
|
Module Dimensions (W × H, mm) |
300 × 168.75 |
300 × 168.75 |
300 × 168.75 |
300 × 337.5 |
|
|
Weight per Module (kg) |
0.31 |
0.31 |
0.31 |
0.56 |
|
|
No. of Modules per Cabinet (W × H) |
1 × 2 |
1 × 2 |
1 × 2 |
1 × 1 |
|
|
Cabinet Resolution (W × H) |
240 × 270 |
192 × 216 |
160 × 180 |
120 × 135 |
|
|
Cabinet Dimensions (W × H × D, mm) |
300 × 337.5 × 32.6 |
300 × 337.5 × 32.6 |
300 × 337.5 × 32.6 |
300 × 337.5 × 32.6 |
|
|
Cabinet Surface Area (m²) |
0.1 |
0.1 |
0.1 |
0.1 |
|
|
Weight per Cabinet (kg/unit) |
2.8 |
2.8 |
2.8 |
2.8 |
|
|
Weight per Square Meter (kg/m²) |
27.65 |
27.65 |
27.65 |
27.16 |
|
|
Physical Pixel Density (pixels/m²) |
640,000 |
409,600 |
284,444 |
160,000 |
|
|
Flatness of Cabinet (mm) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
|
Cabinet Material |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
|
|
Service Access |
Front |
Front |
Front |
Front |
|
|
Optical |
Max. Brightness (After Calibration, nit) |
800 (Max.) |
800 (Max.) |
800 (Max.) |
800 (Max.) |
|
Color Temperature (K) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
3,500-9,000 (Default 6,500) |
|
|
Visual Viewing Angle (H × V) |
160 × 160 |
160 × 160 |
160 × 160 |
160 × 160 |
|
|
Brightness Uniformity |
97% |
97% |
97% |
97% |
|
|
Color Uniformity |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
±0.003 Cx, Cy |
|
|
Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
|
|
Processing Depth (bit) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
14 (HDR10, HDR10 Pro) |
|
|
Electrical |
Power Consumption (W/Cabinet, Max.) |
54 |
54 |
48 |
45 |
|
Power Consumption (W/Cabinet, Avg.) |
18 |
18 |
16 |
15 |
|
|
Power Consumption (W/m², Max.) |
533 |
533 |
474 |
444 |
|
|
Heat Dissipation (BTU/h/Cabinet, Max.) |
184 |
184 |
164 |
154 |
|
|
Heat Dissipation (BTU/h/Cabinet, Avg.) |
61 |
61 |
55 |
51 |
|
|
Heat Dissipation (BTU/h/m², Max.) |
1,820 |
1,820 |
1,618 |
1,517 |
|
|
Power Supply (V) |
100 to 240 |
100 to 240 |
100 to 240 |
100 to 240 |
|
|
Frame Rate (Hz) |
50 / 60 |
50 / 60 |
50 / 60 |
50 / 60 |
|
|
Refresh Rate (Hz) |
3,840 |
3,840 |
3,840 |
3,840 |
|
|
Operation |
Lifetime (Half Brightness) |
100,000 |
100,000 |
100,000 |
100,000 |
|
Operating Temperature (°C) |
-10 to +45 |
-10 to +45 |
-10 to +45 |
-10 to +45 |
|
|
Operating Humidity |
0-80% RH |
0-80% RH |
0-80% RH |
0-80% RH |
|
|
IP Rating Front / Rear |
IP30 / IP30 |
IP30 / IP30 |
IP30 / IP30 |
IP30 / IP30 |
|
|
Standard |
Certification |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
CE, FCC, ETL, EMC Class A |
|
Certification (Fire Protection) |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
BS476 Part7 Class 1, EN13501-1 |
|
|
Environment |
RoHS, REACH |
RoHS, REACH |
RoHS, REACH |
RoHS, REACH |
|
|
Controller |
CVCA |
CVCA |
CVCA |
CVCA |
|
|
90 Degree Corner Cut |
Yes |
Yes |
Yes |
Yes |
|
* Specifications are subject to change without notice. Please make sure to check the product manual for details about product usage.
